Product Summary

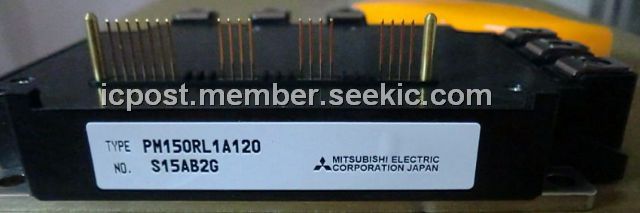

The PM150RL1A120 is an intelligent power module for general purpose inverter, servo drives and other motor controls.
Parametrics
PM150RL1A120 maximum ratings: (1)VCES, Collector-Emitter Voltage at VD = 15V, VCIN = 15V: 1200v; (2)卤IC, Collector Current at TC = 25鈩? 150A; (3)卤ICP, Collector Current (Peak) at TC = 25鈩? 300A; (4)PC, Collector Dissipation at TC = 25鈩? 833A; (5)Tj, Junction Temperature: -20 to 150 鈩?
Features
PM150RL1A120 features: (1)Adopting new 5th generation Full-Gate CSTBTTM chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBTTM is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package.
Diagrams
<IMG border=0 alt="PM150RL1A120 internal functions block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201252113257597.jpg">
